Solar Panel Camera Positioning FAQ

Point a security camera solar panel at the sun, not at the driveway. A 3.5W face needs 3-5 hours of direct light to refill a 5200 mAh pack after an event-based night. Shade from an eave, a tree, or a winter sun that sits too low will starve the cell even when the 1080p view looks perfect. Steepen the panel in the dark months without dragging the lens off the gate.

Point the panel at the sun, not at the driveway

The lens job is identification. The panel job is photons. Those jobs share a housing only on a lucky wall. If the gate faces north, the 3.5W glass still needs south or west sky. Use a tilt arm or a separate plate.

Direct sunlight means a sharp shadow of the panel on the wall at midday. A bright, even porch that never throws that shadow is bounce, not charge. Plan 3-5 hours of the sharp kind.

PTZ can look at the driveway after the panel is already in the light. It cannot rotate a built-in panel out from under a fascia.

Shade that looks small still kills a 3.5W panel

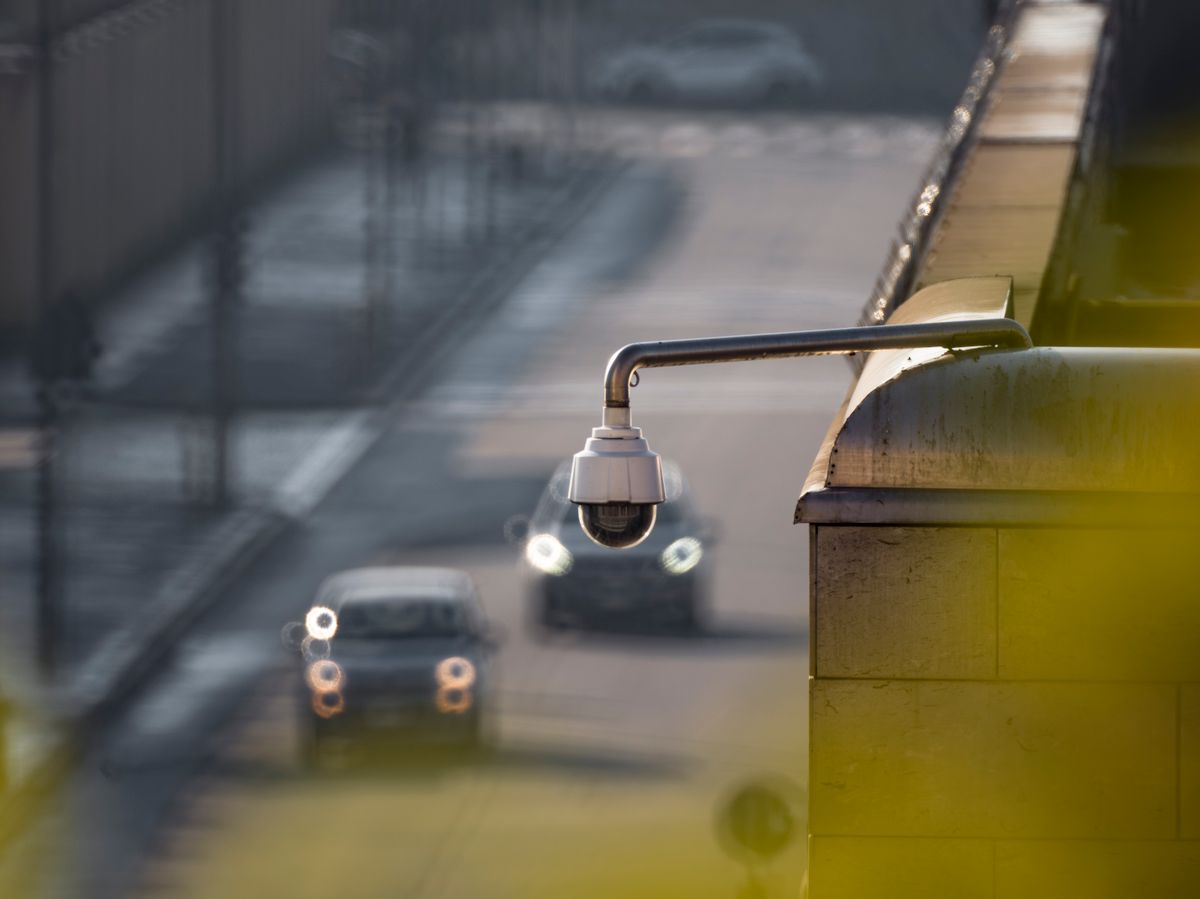

CCTV camera overlooking a busy street with cars in motion, capturing urban surveillance.
Photo by tommy picone on Pexels

A 3.5W module is small. A strip of eave shade across half the glass is not 'a little less power.' It is often the difference between a 4-8 hour recharge and a pack that never catches up. Tree swell in May does the same thing a bare branch hid in March.

Watch the plate from 10 a.m. to 3 p.m., not at noon only. Many soffit cameras look heroic at noon and sit in shade by 1 p.m.

Snow, pollen, and coastal film are shade you can wipe. IP65 keeps rain out of the body; it does not keep grit off the glass. A dirty panel is a positioning problem you can fix without moving screws.

Seasonal sun is a different height, not a different camera

Winter sun sits lower and lasts less. A flush built-in panel that worked in June may see only the fascia in January. Steepen the panel toward the lower sun. Keep the lens at 8-10 feet on the path. That is why adjustable panels exist.

The first charge is still 8-10 hours. After a cloudy stretch, budget 4-8 hours of decent light. Do not judge winter performance on an uncharged pack the day after a storm.

If no seasonal tilt is possible and the wall is a north cave, solar is the wrong power for that exact hole. Move the camera to a pinch that has sky, or split the panel to the roof edge.

Panel positions that charge versus positions that only look sunny

| Panel pose | Charges a 5200 mAh pack | Why | | --- | --- | --- | | Open south or west wall, 3-5 hours direct | Yes | Sharp midday shadow on the glass | | Under a deep porch ceiling | No | Bounce light, no direct disk | | Flush on a north gable | Rarely | Winter sun never climbs onto the face | | Separate plate above an eave | Yes if the cable is safe | Lens keeps the path; glass keeps the sky | | Steeper winter tilt on the same screws | Yes | Lower sun still hits the 3.5W face |

Solar panel positioning checklist

Close-up of a black and white CCTV surveillance camera with spotlights mounted on a building wall.
Photo by Possessed Photography on Pexels

[ ] Aim the 3.5W panel at the sun, not at the scene.
[ ] Confirm a sharp panel shadow for 3-5 hours, not just a bright porch.
[ ] Check 10 a.m. to 3 p.m. for eave and tree shade.
[ ] Steepen the panel in winter without moving the lens off the gate.
[ ] Wipe pollen, dust, and snow off the glass.
[ ] Finish 8-10 hours of first charge, then a 4-8 hour recharge test.

Frequently asked questions

Where should a security camera solar panel point?

At the sun. South or west open sky is the usual residential answer. The lens can look at the driveway separately.

How many hours of sun does the panel need?

Plan 3-5 hours of direct light on a 3.5W face. After clouds, expect 4-8 hours to refill the 5200 mAh pack.

Will a shaded porch still charge if it looks bright?

Usually not. Bright bounce is not the same as a direct solar disk on the glass.

Do I need to move the camera every season?

Not if the panel can tilt. Steepen it in winter. Move the whole camera only when no tilt finds sun.

Can I put the panel on the roof and the camera on the wall?

Yes when the cable is protected and out of reach. That split is how a shaded door still stays powered.

Does PTZ help the panel find sun?

No. PTZ aims the lens. Sun is a panel aim. Park the housing where the glass already sees sky.

What to do next

At midday, look for a sharp shadow of the 3.5W panel. If there is none from 10 a.m. to 3 p.m., move or tilt the glass toward the sun and leave the lens on the path. Steepen the panel for winter, wipe the face, finish an 8-10 hour first charge, and only then judge whether the 5200 mAh pack can refill in a 4-8 hour sun window.
