How to Draw Motion Detection Zones That Ignore Streets, Shadows, and Trees

A motion detection zone is a shape you draw on the camera's view to tell it which parts of the frame it should care about. Drawn well, it removes the street, the sidewalk, the neighbor's driveway, and the tree that moves all day, leaving only the ground a person has to cross to reach your property. Most alert noise disappears at this step, before any sensitivity slider is touched.

The skill is geometric rather than technical. You are not choosing settings so much as reading the scene and deciding where a real intruder must physically be.

What should a good zone actually cover?

Cover the approach, not the destination. The instinct is to draw a box around the door or the vehicle, but by the time someone is at the door they have already been in frame for several seconds. A zone placed across the path they must walk gives earlier warning and cleaner clips.

Practical rules that hold across most scenes:

• Include chokepoints. Gates, gaps in hedges, the end of a driveway, the top of steps, and the narrow strip between a house and a fence are all places a person has to pass through.
• Exclude the far background. Movement at distance is small in frame, poorly resolved, and rarely yours to worry about. Streets, sidewalks, and neighboring yards belong outside the zone.
• Exclude the sky and the tops of trees. Nothing you need is up there, and everything up there moves.
• Exclude ground within a few feet of the lens. Rain, snow, insects, and spiderwebs are enormous in frame at close range and trigger constantly.
• Follow the ground plane. A zone should look like a region of ground seen in perspective, wider at the bottom of the frame and narrower toward the top, not a rectangle floating in the middle of the image.
• Leave a margin at the zone edge. A person clipping the boundary produces partial detections. Extend the shape slightly past where you think the path runs.

How to draw zones step by step

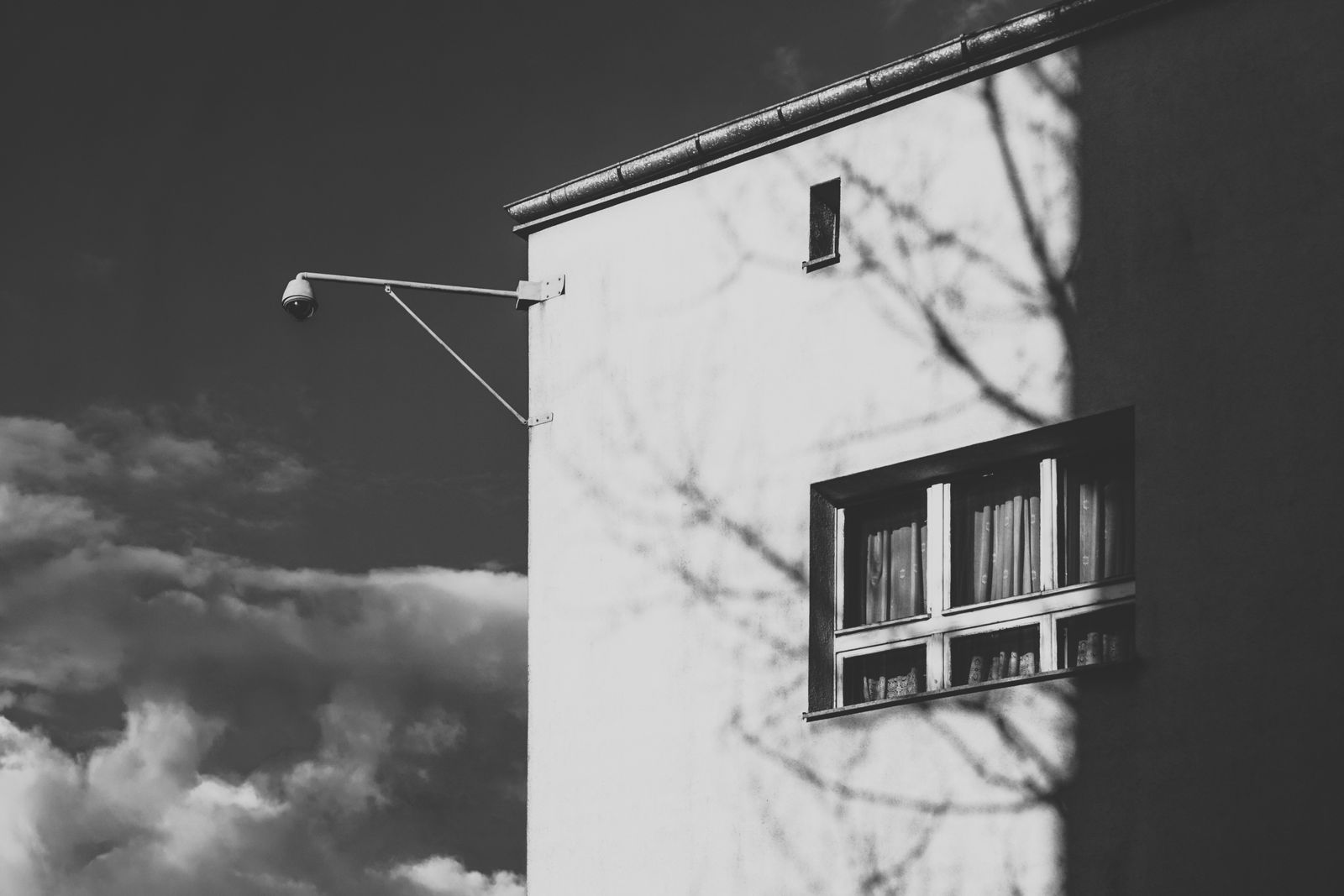

Photo by Ala J Graczyk on Pexels

Watch a full day of clips first, or at least a morning and an evening. You cannot draw a good zone from a single still image, because the problems are all motion problems.

Note what triggered each unwanted clip and where in the frame it happened. A short list emerges quickly: the sidewalk, one branch, a shadow line across the garage door.

Sketch the approach paths. Mark every route from the property boundary to each entrance. These are your zones.

Draw the shapes to match the ground, using perspective rather than symmetry. Most apps allow polygons; use the extra points rather than settling for a rectangle.

Cut out the known offenders. Pull the boundary in from the street, off the tree line, and away from the wall that catches moving shadows.

Set sensitivity per zone if the app allows it. A long approach viewed at distance needs more sensitivity than a doorway three feet from the lens.

Walk the paths and confirm detection, at a normal walking pace, both in the middle of the zone and along its edge.

Walk the excluded areas and confirm silence. This test is the one people skip, and it is the one that proves the exclusion worked.

Repeat both walks after dark, since night illumination changes what the sensor sees and can pull insects into the near field.

Re-check after any camera adjustment. A zone is tied to the lens position; moving the camera invalidates the drawing.

Which zone shape fits which scene?

| Scene | Zone shape | What to exclude | |---|---|---| | Driveway from the house | A tapering band along the driveway surface | The street at the far end and the sidewalk crossing | | Front door and porch | A band across the walkway approach, not the door itself | The lawn beyond the walk and any nearby shrubs | | Side yard passage | A narrow strip spanning the gap between structures | Fence tops and the neighboring yard past the fence | | Back gate | A tight shape around the gate opening and the ground in front of it | Overhanging branches and anything past the gate line | | Shed or outbuilding door | A shape covering the door plus a few feet of ground in front | Distant field or tree line and the sky | | Parking area at a business | Bands across the pedestrian routes between vehicles | The public road and adjacent property | | Long unpowered perimeter | Several small zones at the crossable points | Everything between them |

That last row is worth emphasizing. On a large property, several small zones at real crossing points beat one enormous zone covering acreage, because the large zone will be triggered by every animal and every gust while giving you no information about direction of travel.

Zones on a camera that pans and tilts

A camera with pan, tilt, and zoom introduces a complication: the zone you drew applies to a specific lens position. When the camera moves to another position, that drawing no longer lines up with the scene.

Practical ways to handle it:

• Save a small number of preset positions and treat each one as its own scene with its own zone, rather than moving the camera freely.
• Choose a home position that covers the most important approach, and configure that position most carefully. It is where the camera will spend most of its time.
• Avoid drawing zones while zoomed in unless the camera will stay zoomed. Zoom changes the frame, and the zone changes with it.
• Re-verify the zone after any manual aiming session, because it is easy to leave the camera slightly off its saved position.

Coverage strategy with a moving lens is discussed further in our notes on driveway motion detection with solar cameras.

Scene problems zones cannot fix

Some sources of false triggers are physical, and no amount of drawing will resolve them.

• Sun path across a wall. A camera aimed at a large flat surface that receives direct sun will see moving shadow edges twice a day. Angling the camera so the wall is not the dominant surface in frame is the real fix.
• Insects at the lens. Attracted by illumination, they trigger constantly at night. Cleaning the housing and its immediate surroundings regularly helps, as does mounting so the illuminated area sits away from the lens.
• Wind-loaded plants inside the zone. If a shrub sits directly on an approach path, trimming it is faster than fighting the software.
• Rain running off an eave into the frame. Shifting the mount a few inches out from the drip line removes a nightly trigger source.

Night-specific behavior interacts with all of this, since illumination and image mode changes alter what registers as movement. Our article on color night vision reliability covers the after-dark side.

Why tighter zones help a solar camera run longer

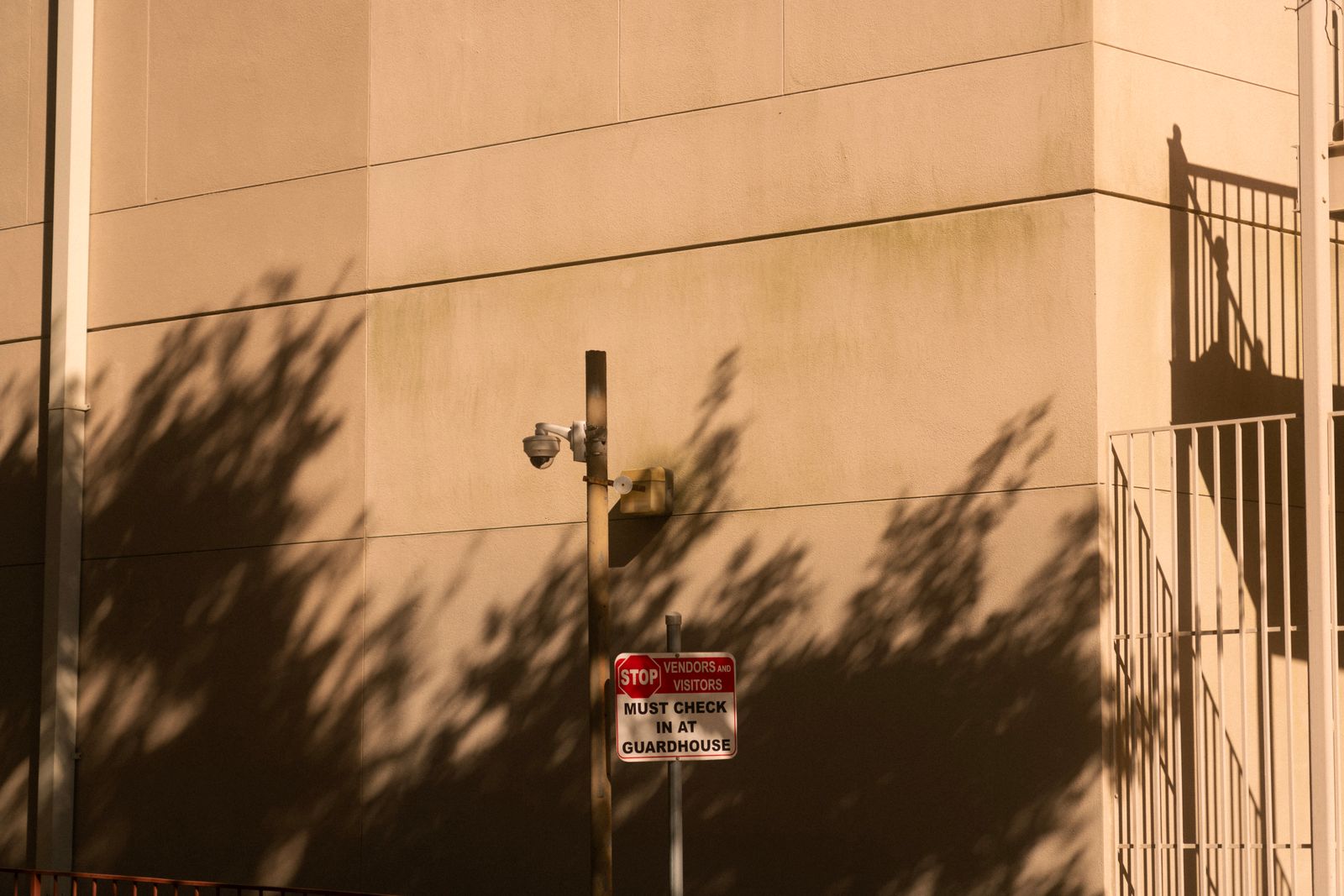

Photo by Eddie O. on Pexels

Every recording spends energy. On a camera powered by a panel and battery, a scene that triggers dozens of times a day spends much of its charge on clips of a swaying branch. Tightening zones therefore does two things at once: it removes noise from your phone and it leaves more stored charge available for the events that matter, particularly through short winter days and overcast stretches.

Placement, audio, and local rules

Drawing a zone changes what is recorded but not what is captured, so placement still matters legally. Laws on recording audio and on filming areas beyond your own property vary by state, city, and country, and it is worth confirming the local rules before finalizing an angle or enabling audio. Aim at your own entrances, driveway, and structures. Never position or use a camera to record inside a neighbor's home or fenced private space. Where part of a public walkway is unavoidably in frame, excluding it from the detection zone and disabling audio on that camera is the conservative approach. A lower-profile setup for driveways is discussed in our hidden driveway camera guide.

FAQ

Does a detection zone stop the camera from recording other areas? Usually it stops the camera from starting a recording because of movement outside the zone, but once recording begins, the whole frame is captured. That is the behavior you want: the zone controls what triggers, not what is visible.

How many zones should one camera have? Two or three well-placed zones per view is typical. More than that on a single scene usually means the camera is trying to cover too much and would be better repositioned or supplemented.

Should I lower sensitivity or tighten the zone first? Tighten the zone first. Sensitivity is a blunt instrument that affects the whole frame, and lowering it far enough to ignore a distant sidewalk may also cause it to miss a person walking slowly up your path.

Why do I still get alerts from an excluded area? Two common reasons. The camera may have shifted slightly, which moves the whole scene relative to the drawing, or the trigger may actually be coming from an included area adjacent to the one you blamed. Reviewing the clip frame by frame usually shows which.

Next step

Pull up yesterday's clip list and write down what caused each unwanted alert and where it happened in the frame. Then draw one polygon per approach path, cut the street and tree line out, and run the two walk tests: once through the zone and once through the excluded area. That hour of work removes more noise than any other single adjustment.
